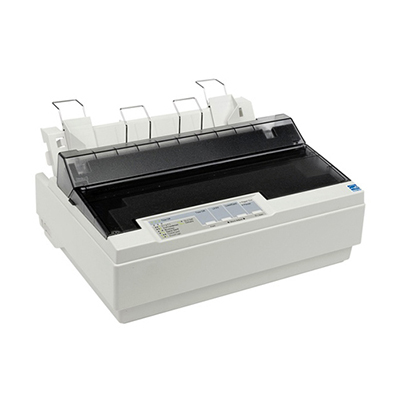

Dot Matrix Printer
| Technical Specifications | |
| Power Supply requirement | 9VDC, 1.5Amp |
| Power Consumption Stand by : Printing : |
140 mA <1.5 Amp |
| Communication port | RS232 |
| Baud rate | 2400 and 9600 bps |
| Buffer size | 1K bytes |
| Protocol | Time based |
| Printer Mechanism | Epson M-190G |
| Print Method | Impact dot matrix printer (8 print solenoids) |
| Print Format Total number of dots : Number of Columns : |
Maximum 144 dots/dot line Maximum 24 (5 X 7 font and 1 dot column space)(3-columns/print solenoid x 8) |
| Character Size Dot pitch : 5 X 7 font : |
Horizontal-0.33 mm, Vertical- 0.37 mm 1.7mm(W) x 2.6mm(H) |
| Printing Speed 1 line printing : 1 dot line : |
2.7 lines/sec +/- 20% (typical) (5 X 7 font + 3-dot line spacing) 21.6 dot lines/sec +/- 20% (typical) (Motor terminal voltage at 4.8 VDC constant, continuous printing) |
| Coping Capability | 1 Original + 1 copy |
| Paper Type | Single-ply paper roll or Two-ply pressure-sensitive paper |
| Paper Size | 57.5 +/- 0.5 mm (Paper width) |
| Inking Ribbon cassette : Color : Life : |
Possible to use ERC-22 or ERC-09 Purple or Black Purple- approx 1million characters Black- approx 600,000 characters |
| Reliability MCBF : Printer life : |
1,500,000 lines (including print solenoid) 2,250,000 lines |
| Mechanical Data Size (mm) : Weight : |
200mm(D) X 170mm(W) X 65mm(H) 470gm (without paper) |
| Note: The Printer Software can be customized according to the client’s requirement. |
|
