LED DRIVERS

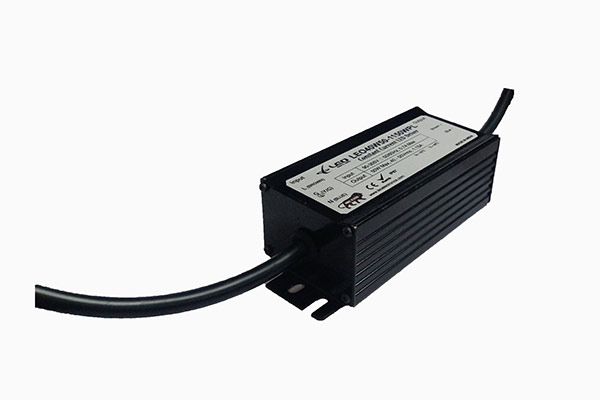

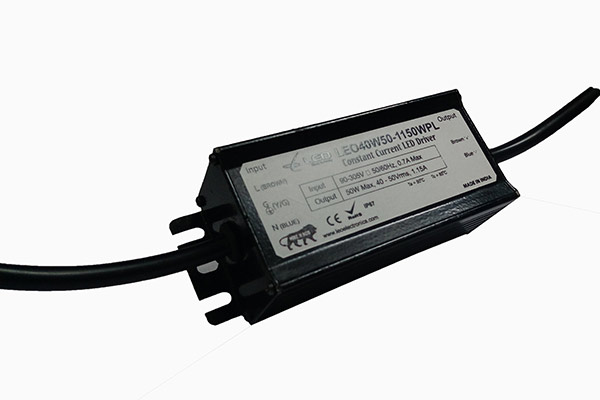

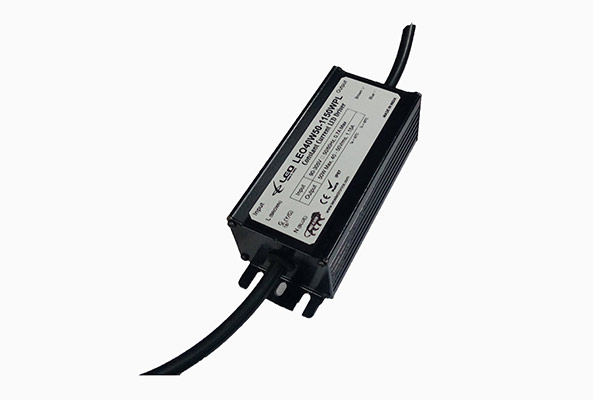

Waterproof LED Drivers
Versions
| Model | Output Current | Max. Output Power | Rated Output Voltage |
| LEO15W24-700-WP | 700mA | 24W | 21 - 34 VDC |
| LEO15W24-1000-WP | 1000mA | 24W | 15 - 24 VDC |
| LEO24W30-700-WP | 700mA | 30W | 34 - 43 VDC |
| LEO24W30-1000-WP | 1000mA | 30W | 24 - 30 VDC |
| LEO30W40-700-WP | 700mA | 40W | 43 - 57VDC |
| LEO30W40-1000-WP | 1000mA | 40W | 30 - 40VDC |
| LEO40W50-1000-WP | 1000mA | 50W | 40 - 50 VDC |
| LEO40W50-1400-WP | 1400mA | 50W | 28 - 36 VDC |
| LEO50W70-1000-WP | 1000mA | 70W | 50 - 70 VDC |
| LEO50W70-1400-WP | 1400mA | 70W | 36 - 50 VDC |
- Isolated Waterproof constant current LED driver with IP67 ingress protection
- Reliable & Efficient Solution
- Universal Input Voltage from 90 - 305VAC
- High Surge protection up to 6KV
- High PF (>0.95) & low THD (<8%)
- Comprehensive protection against abnormal operating conditions like Input over-voltage, Output over-voltage, Output open/short circuit
- Long Lifetime up to 50,000 hrs
- 3 Years Warranty
| Mains voltage supply | ||
| Rated voltage range | 90-305 V | |
| Rated Frequency | 50Hz…..60Hz | |
| Protection against voltage peaks | ||
| Voltage peaks L - N | 6kV(Surge) | |
| Total harmonic distortion | ||
| At 100% load operation | ≤8% | |
| Tolerance of Output Current | ||
| At any Line/Load Conditions | +/- 10 % | |
| Starting time | ||
| Time to 100% luminous flux | <1s | |
| Power factor | ||
| PF≥0.99/115VAC | PF≥0.95/230VAC | PF≥0.9/277VAC @ full load |
| Efficiency (Typ.) Full load | ||
| LEO15W24-XXXX | 87% | |
| LEO24W30-XXXX | 88% | |
| LEO30W40-XXXX | 89% | |
| LEO40W50-XXXX | 90% | |
| LEO50W70-XXXX | 90% | |
| Output data | ||
| Galvanic separation to mains input | yes, test voltage 3.75 kV(between I/P & O/P) | |
| Protection features | ||
| Input Over-voltage | Above 330VAC | |
| Output Over-voltage | >120% | |
| Output Open/Short-circuit | Hiccup mode | |
| Lifetime | ||
| Operation at tc = tc,max | 50,000 hrs | |
| Max. temperature at housing surface in Case of failure | ||
| Max. temperature | + 110 °C | |
