LED OUTDOOR LIGHTS

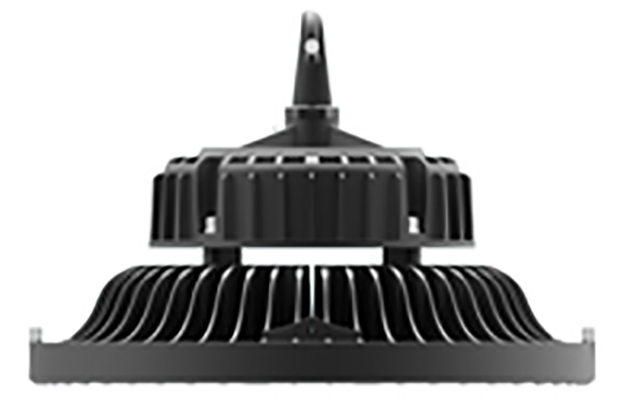

UFO Light
| Electrical | |
| System Power | 240 Watt ± 2% |
| Input Voltage | 240V, 50Hz |
| Operating Voltage Range | 90 Volt AC- 305 Volt AC |
| Startup Low Voltage | 90 Volt AC |
| Input Current | 2Amps./230 VAC |
| Frequency | 50-60Hz |
| Power Factor | Pf >0.95 @ 230V AC |
| THD | ≤ 10% |
| Efficiency | >93.5% |
| LED Driver | MOSO/Meanwell |
| Dimming | PWM Dimming , 0-10V Dimming |
| Optical | |
| Luminous Flux | 36000lm |
| Luminous Efficacy | 144 lm/W @ 5000 K |
| Color Temperature ( CCT ) | Cool White ( 5700K - 6500K ) |
| CRI | 70 |
| Optics Used | Water Wave Lenses |
| Beam Angle | 60º/90º/120º degree |
| Safety | |
| Protections, (Electronic Driver) |
Short Circuit and Open Circuit Over current (95-100%) Over Voltage ( Shut down O/p voltage ) Surge Rating ( 4KV Line to Earth) |
| Ingress Protection | IP66 protection class, waterproof, dustproof, corrosion proof. |
| LED | |
| Type of LED | High Power LED |
| LED Make | OSLON Square |
| LED Beam Angle | Wide Beam angle (up to 120º) |
| LED Lumens | 140 lm/w |
| LED Life | 50000 Hr |
| Mechanical | |
| Max Size | Ø 330mm x H – 149 mm |
| Material for Fixture | Using high-strength aluminum alloy body, stable, beautiful and fully recyclable |
| Type of Mounting | Hanging Ring |
| Material for LED Engine | Metal Core PCB 3 w/k |
| Material for Lens | PC/PMMA |
